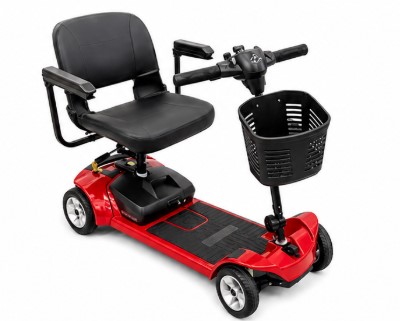

You’ll take on all the day’s travels with confidence when equipped with the Rascal® Venture 4-Wheel mobility scooter. Its four 8-inch solid tires provide stability in any environment, and the unit disassembles into five lightweight pieces in just seconds, making it ideal for storage and transport. Enjoy tailored comfort by adjusting the angle of the tiller and the width of the armrests. Plus, the swivel seat function is ideal for making transfers and accessing surfaces. With a 300-lb. weight capacity and a battery range of up to 8 miles (at 200 lbs.), the Rascal® Venture 4-Wheel is an FDA Class II Medical Device, meeting the most stringent testing standards for a top-quality mobility experience.
| Model Numbers | 3-wheel: RSC39; 4-wheel: RSC49 |
| Weight Capacity | 300 lbs. |
| Speed (Maximum)1 | 4 mph |
| Ground Clearance2 | 3-wheel: 1.26 in. at motor 4-wheel: 1.36 in. at motor |
| Turning Radius2 | 3-Wheel: 33 in. 4-Wheel: 46.75 in. |
| Reversing Width (K-turn)2 | 3-Wheel: 42 in. 4-Wheel: 40.5 in. |
| Overall Length2 | 3-Wheel: 38.5 in. 4-Wheel: 40.5 in. |
| Overall Width2 | 22.5 in. |
| Tires2 | Front and Rear: 8 in. |
| Range Per Charge1,4 | 3-Wheel: Up to 10.1 miles at 200 lbs. 3-Wheel: Up to 8.1 miles at 300 lbs. 4-Wheel: Up to 8 miles at 200 lbs. 4-Wheel: Up to 6.6 miles at 300 lbs. |
| Total Weight Without Batteries5 | 3-Wheel: 76.5 lbs. 4-Wheel: 81.5 lbs |
| Standard Seating2 | Type: Moldable Plastic Material: Black Vinyl Weight: 22.7 lbs. Width: 17 in. Depth: 17 in. |
| Drive System | Rear-wheel drive, single motor, 24-volt DC motor |
| Dual Braking System | Regenerative and electromechanical |
| Battery Requirements3 | Type: Two 12-volt, sealed lead-acid, non-spillable deep-cycle Size: 12Ah |
| Battery Pack Weight6 | 20 lbs. |
| Battery Charger | 2 amp off-board charger |
| Freewheel Operational Force | Less than 60 N |
| Drive Control Operational Force | Less than 5 N |
| Maximum Rated Slope | 6° |
| Maximum Obstacle Climbing Ability (Ascending/Descending)2 | 2 in. |
| Seat to Deck Height | 15.5 – 18 in. |
| Seat Height | 15.75 in. |
| Overall Height | 34.75 in. |
| Measured Sound Level (A-weighted) | Less than 65 dB |
1 Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.
2 Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3 AGM, Gel-Cell, Lithium-ion, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See III. “Batteries and Charging.”
4 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5 Includes standard seat.
6 Battery weight may vary based on manufacturer
